Importing libraries for the GP.

In [8]:

import numpy as np
import matplotlib.pyplot as plt
from sklearn.gaussian_process import GaussianProcessRegressor
from sklearn.gaussian_process.kernels import RBF, ConstantKernel as C

Creating a function and drawing noisy observations from it.

In [16]:

def f(x):
    return x * np.sin(x)

X = np.atleast_2d([1., 2.5, 3., 5., 6., 7., 8.]).T
y = f(X).ravel() + np.random.normal(0, 0.5, X.shape[0])

Training the model.

In [17]:

kernel = C(1.0, (1e-3, 1e3)) * RBF(10, (1e-2, 1e2))
gp = GaussianProcessRegressor(kernel=kernel, n_restarts_optimizer=9, alpha=0.1)
gp.fit(X, y)

GaussianProcessRegressor(alpha=0.1, kernel=1**2 * RBF(length_scale=10),
                         n_restarts_optimizer=9)

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

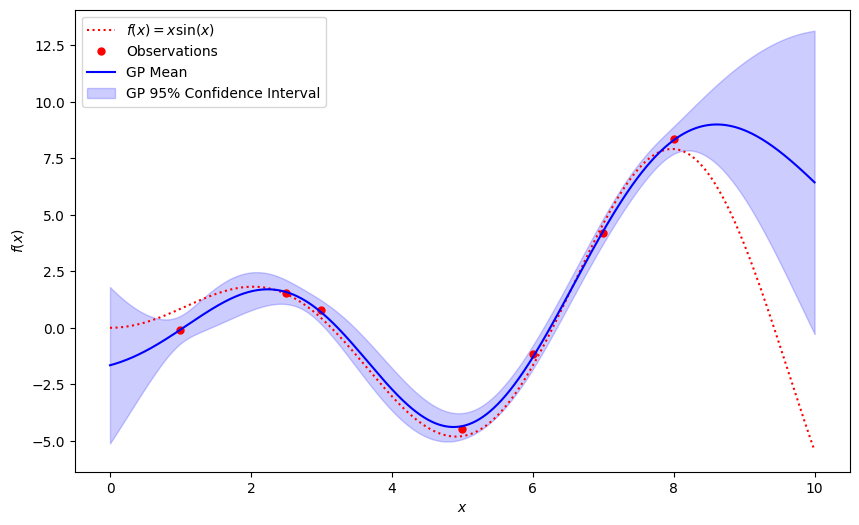

Plotting the prediction.

In [18]:

x_range = np.atleast_2d(np.linspace(0, 10, 1000)).T
y_pred, sigma = gp.predict(x_range, return_std=True)

plt.figure(figsize=(10, 6))
plt.plot(x_range, f(x_range), 'r:', label=r'$f(x) = x \sin(x)$')
plt.plot(X, y, 'r.', markersize=10, label='Observations')
plt.plot(x_range, y_pred, 'b-', label='GP Mean')
plt.fill_between(x_range.ravel(), y_pred - 1.96 * sigma, y_pred + 1.96 * sigma,
                 alpha=0.2, color='blue', label='GP 95% Confidence Interval')

plt.xlabel('$x$')
plt.ylabel('$f(x)$')
plt.legend(loc='upper left')
plt.show()
