In [1]:

---
execute:
  eval: false
  echo: true
  warning: false
format:
  html:
    code-fold: false
---

Importing libraries for the NB.

In [1]:

import numpy as np
import matplotlib.pyplot as plt
from sklearn.datasets import make_blobs
from sklearn.naive_bayes import GaussianNB
from matplotlib.colors import ListedColormap
from sklearn.metrics import classification_report

Creating a synthetic dataset.

In [5]:

X, y = make_blobs(n_samples=300, centers=3, n_features=2, cluster_std=5.0, random_state=42)

Training the model.

In [6]:

gnb = GaussianNB()
gnb.fit(X, y)

GaussianNB()

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

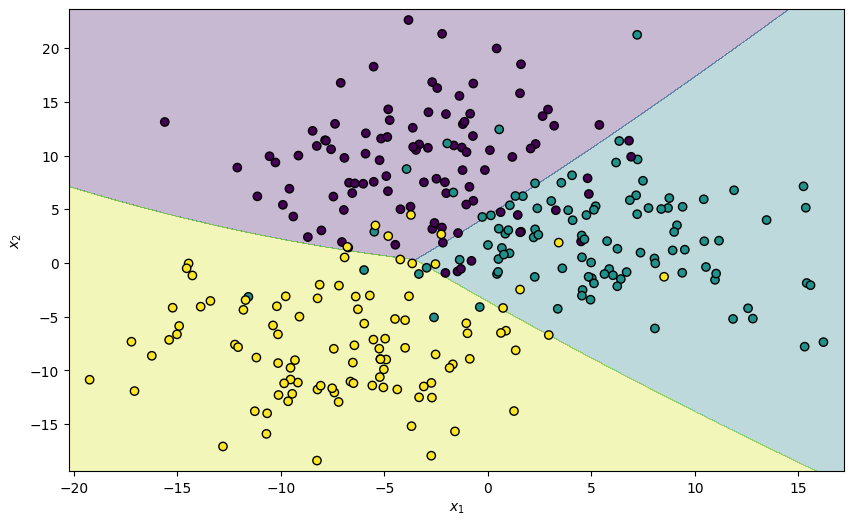

Printing the decision boundaries of the model.

In [7]:

h = .02
x_min, x_max = X[:, 0].min() - 1, X[:, 0].max() + 1
y_min, y_max = X[:, 1].min() - 1, X[:, 1].max() + 1
xx, yy = np.meshgrid(np.arange(x_min, x_max, h), np.arange(y_min, y_max, h))

Z = gnb.predict(np.c_[xx.ravel(), yy.ravel()])
Z = Z.reshape(xx.shape)

plt.figure(figsize=(10, 6))
plt.contourf(xx, yy, Z, alpha=0.3, cmap='viridis')
plt.scatter(X[:, 0], X[:, 1], c=y, edgecolors='k', cmap='viridis')
plt.xlabel(r"$x_1$")
plt.ylabel(r"$x_2$")
plt.show()
